Deadlock -- Operating Systems


Index

  1. Deadlock Definition
  2. Necessary and Sufficient Conditions for Deadlock
  3. Resource Allocation Graph
  4. Single-Instance Resource allocation graph
  5. Multi-instance resource allocation graph.
  6. Deadlock Avoidance
  7. Deadlock Avoidance Algorithm (Banker's Algorithm)
  8. Deadlock Detection and Recovery
  9. Deadlock Detection
  10. Deadlock Recovery
  11. Example of Deadlock Detection and Recovery

Deadlock: Definition

A deadlock is a situation in an operating system where a set of processes are blocked because each process is waiting for a resource that is held by another process in the set. In simpler terms, a deadlock occurs when multiple processes are unable to proceed because they are each holding resources that the other processes need to continue.

Example:

If two processes (P1 and P2) are each holding a resource that the other needs, but neither can release its resource until it gets the other, they end up in a deadlock.


Necessary and Sufficient Conditions for Deadlock

There are four necessary and sufficient conditions that must be present simultaneously for a deadlock to occur:

  1. Mutual Exclusion: At least one resource must be held in a non-shareable mode. In other words, only one process can use the resource at a time. If another process requests that resource, the requesting process must be delayed until the resource is released.

  2. Hold and Wait: A process must be holding at least one resource and waiting to acquire additional resources that are currently being held by other processes.

  3. No Preemption: Resources cannot be forcibly taken away from a process. A resource can only be released voluntarily by the process holding it, after that process has completed its task.

  4. Circular Wait: A set of processes must exist in such a way that each process is waiting for a resource held by the next process in the chain. This forms a circular chain of waiting processes.

    • Example: P1 → P2 → P3 → P1 (forms a circular wait).

If all four of these conditions are met, a deadlock occurs. If even one condition is not satisfied, deadlock can be avoided.


Deadlock Prevention

Deadlock prevention involves designing a system in such a way that one or more of the four necessary conditions for deadlock (mutual exclusion, hold and wait, no preemption, circular wait) are never allowed to occur. The idea is to proactively prevent deadlocks before they happen.


1. Mutual Exclusion:


2. Hold and Wait:


3. No Preemption:


4. Circular Wait:


Practical Considerations in Deadlock Prevention:


Example:

Let’s consider a printer and a plotter as resources that two processes (A and B) might need.

Hold and Wait Prevention:

Circular Wait Prevention:


Resource Allocation Graph

https://www.youtube.com/watch?v=BW74JYB3QOM&list=PLxCzCOWd7aiGz9donHRrE9I3Mwn6XdP8p&index=39

A resource allocation graph (or RAG) is a graph that keeps track of resources and their usage by different processes.

The graph has vertices, some of which are process vertices and the other are resource vertices.

flowchart TD;
	Vertex-->Process_Vertex
	Vertex-->Resource_Vertex
	Resource_Vertex-->Single_Instance
	Resource_Vertex-->Multi_Instance

And the direction of the edges indicate assign/hold or request.

flowchart TD;
	P-->R

Here node P indicates Process and R indicates Resource.

Process to Resource indicates a request for the resource.

flowchart TD;
	R-->P

Resource to Process indicates that the process has currently acquired the resource.


Single-Instance Resource allocation graph

Now in a graph like this :

flowchart LR;
	P1-->R2
	R2-->P2
	P2-->R1
	R1-->P1

Here we see that Process P1 is requesting resource R2, which is acquired by P2. P2 similarly is trying to acquire resource R1 , which is held by process P1.

This shows that there is a cycle in the graph, causing a circular wait, which results in a deadlock.

However there are more complex resource allocation graphs, so we will need a better way to figure out whether there is a deadlock or not.

That will be done using a "detection mode" of the Banker's algorithm which is displayed in the next section.

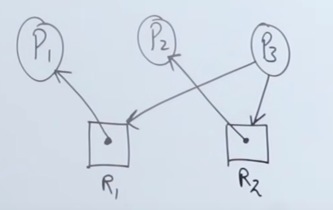

So let's say we have another RAG like this :

Pasted image 20241026182700.png

So what we need to do, is to first build the resource allocation table :

We will be filling the allocate column first to account for the resources held by processes

Processes Allocate Request/Need Available
P1 1 0 0 0 0 0
P2 0 1 0 0
P3 0 0 1 1

The numbers indicate which resource is held by which process. Considering simplicity, we consider R1 first followed by R2

So we see that availability set can satisfy the current process P1 as it doesn't need process R2 and it already has R1 so no need for that.

So P1 executes and resource R1 frees up. Now we have

Processes Allocate Request/Need Available
P1 1 0 0 0 0 0
P2 0 1 0 0 1 0
P3 0 0 1 1

Now we see that P2 already has resource R2 and it doesn't need resource R1 which is now free.

So P2 executes as well, and our table becomes

Processes Allocate Request/Need Available
P1 1 0 0 0 0 0
P2 0 1 0 0 1 0
P3 0 0 1 1 1 1

So now we can satisfy process P3, thus executing it as well.

Using the resource allocation table, we could see whether there was a possibility of deadlock, which only happens if the request values conflict with the available values for a particular process.


Multi-instance resource allocation graph.

https://www.youtube.com/watch?v=hJhB2ddOQtg&list=PLxCzCOWd7aiGz9donHRrE9I3Mwn6XdP8p&index=40

Example 1

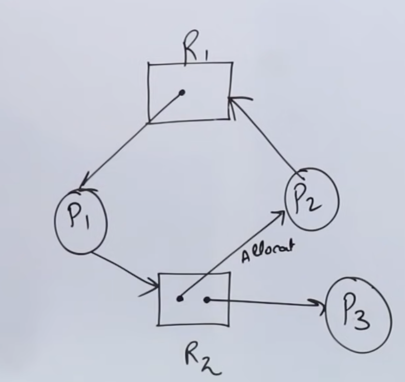

Let's say we have a resource allocation graph here

Pasted image 20241027114921.png

We need to find out whether a deadlock exists in this graph or not.

So we build the resource allocation table

I made the columns for the resources separate this time for better understanding

Process Allocated - R1 Allocated - R2 Requesting -R1 Requesting -R2 Available - R1 Available - R2
P1 1 0 0 1 0 0
P2 0 1 1 0 0 0
P3 0 1 0 0 0 0

So now we run the available figure (0,0) against the requesting section, see if anything can be satisfied.

We see that process P3 has no need for any resources. So P3 gets terminated after execution.

Our current availability becomes: (0,1)

Process Allocated - R1 Allocated - R2 Requesting -R1 Requesting -R2 Available - R1 Available - R2
P1 1 0 0 1 0 1
P2 0 1 1 0 0 1

Executing P3 freed up one instance of resource R2, held by it.

We see that process P1 needs one instance of resource R2, which can be satisfied. So P1 gets executed right after.

Now our current availability becomes: ``

Process Allocated - R1 Allocated - R2 Requesting -R1 Requesting -R2 Available - R1 Available - R2
P2 0 1 1 0 1 1

Executing P1 freed up the resource R1 which was held by it.

Now lastly, process P2 needs one instance of resource R2 to execute, which is now available.

So P2 is terminated successfully as well.

Since in this graph, there was no mutual exclusion, hold and wait, or circular wait, there is no deadlock.

However processes P1 and P2 had to be starved first to get executed after P3 was done.

So there was some starvation, but no deadlock in this resource allocation graph.


Example 2.

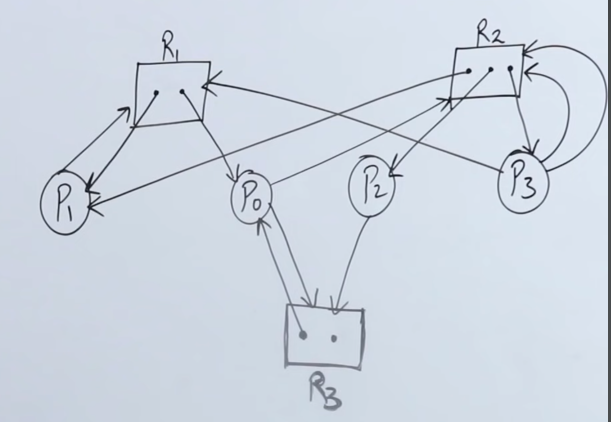

Pasted image 20241027120823.png

Let's build a resource allocation table for this graph.

Process R1 -Alloc R2-Alloc R3- Alloc Req -R1 Req -R2 Req- R3 Available - R1 Available - R2 Available - R3
P0 1 0 1 0 1 1 0 0 1
P1 1 1 0 1 0 0 0 0 1
P2 0 1 0 0 0 1 0 0 1
P3 0 1 0 1 2 0 0 0 1

We see that resource R3 has 1 instance free, so our current availability becomes: (0,0,1).

We see that with our current availability we can execute process P2 as it has a need of only one instance of resource R3.

So our new availability becomes: (0,1,1)

Process R1 -Alloc R2-Alloc R3- Alloc Req -R1 Req -R2 Req- R3 Available - R1 Available - R2 Available - R3
P0 1 0 1 0 1 1 0 1 1
P1 1 1 0 1 0 0 0 1 1
P3 0 1 0 1 2 0 0 1 1

Now we can terminate process P0 since it needs one instance of R2 and R3 each.

So our new availability becomes : (1,1,2)

Process R1 -Alloc R2-Alloc R3- Alloc Req -R1 Req -R2 Req- R3 Available - R1 Available - R2 Available - R3
P1 1 1 0 1 0 0 1 1 2
P3 0 1 0 1 2 0 1 1 2

Every single freed up instance of a resource needs to be added to the existing instances in our availability matrix to get the total available resources.

Now we see that process P1 can be executed as it needs only one instance each of R1 and R2.

So our new availability becomes: (2,2,2)

Process R1 -Alloc R2-Alloc R3- Alloc Req -R1 Req -R2 Req- R3 Available - R1 Available - R2 Available - R3
P3 0 1 0 1 2 0 2 2 2

Finally we can execute and terminate process P3 as it has a requirement one instance of R1 and two instances of R2.

And with that all our resources are freed up.

So in the graph there was some starvation till all the processes got executed and terminated, but no deadlock was observed as there was no mutual exclusion, no hold and wait, no circular wait.


Deadlock Avoidance

In deadlock avoidance, the system dynamically checks whether granting a resource allocation request will lead to a deadlock in the future. The system makes safe decisions to avoid deadlock, by ensuring that resources are allocated in such a way that the system remains in a safe state.

Safe State

A safe state is a condition where there exists a sequence of processes such that every process can eventually obtain all the needed resources and complete execution. If a system is in a safe state, deadlock can be avoided. Conversely, if the system is in an unsafe state, there is a potential risk of deadlock.

Key Concepts in Deadlock Avoidance

  1. Safe State:

    • The system is said to be in a safe state if it can allocate resources to each process in some order and still avoid deadlock.
    • A sequence of processes (P1, P2, ..., Pn) is safe if, for each process Pi, the resources that Pi can still request can be satisfied by the currently available resources or by resources held by processes Pj (where j < i).
  2. Unsafe State:

    • An unsafe state is a situation where deadlock is possible, even if it has not yet occurred. It doesn’t mean a deadlock will definitely happen, but the risk exists.

Deadlock Avoidance Algorithm

Deadlock avoidance relies on the system having information about the maximum resource needs of each process in advance. The system dynamically examines resource allocation requests to decide if allocating the requested resources leaves the system in a safe state.

Banker's Algorithm

The most well-known algorithm for deadlock avoidance is Dijkstra’s Banker’s Algorithm. It checks the safe state of a system before allocating resources. Here’s how it works:

Key Terms:

Steps of the Banker’s Algorithm:

  1. Check for Available Resources:

    • Before allocating resources to a process, check if the requested resources are less than or equal to the available resources.
    • If enough resources are available, proceed to the next step. If not, the process must wait.
  2. Pretend to Allocate the Resources:

    • Simulate the allocation by assuming the resources have been allocated. This is a trial allocation to test if the system remains in a safe state.
  3. Check for Safe State:

    • After the trial allocation, check if the system is still in a safe state. This is done by ensuring that there is a sequence of processes that can finish execution without causing deadlock.
    • For each process, check if the resources it needs can be fulfilled with the currently available resources.
    • If the system is in a safe state, grant the request. If not, deny the request to avoid falling into an unsafe state.
  4. Rollback:

    • If the resource request would lead the system into an unsafe state, roll back the trial allocation and do not grant the resource request.

Example of Banker’s Algorithm

Assume we have:

Let's say we have the following resource allocation information:

Process Max Allocation Need Available
P0 (7, 5, 3) (0, 1, 0) (7, 4, 3) (3, 3, 2)
P1 (3, 2, 2) (2, 0, 0) (1, 2, 2) -
P2 (9, 0, 2) (3, 0, 2) (6, 0, 0) -

Step 1: Check if the requested resources can be satisfied by the current available resources. Let’s say P1 requests (1, 0, 2) resources.

Step 2: Trial allocation. After allocating the resources, we update the allocation and available resources:

Process Max Allocation Need Available
P0 (7, 5, 3) (0, 1, 0) (7, 4, 3) (2, 3, 0)
P1 (3, 2, 2) (3, 0, 2) (0, 2, 0) -
P2 (9, 0, 2) (3, 0, 2) (6, 0, 0) -

Step 3: Check for a safe state. Now, we check if there’s a safe sequence. To find this, we look at whether each process can complete with the currently available resources.

Since we can’t finish all processes, the system would enter an unsafe state if we granted P1’s request. Therefore, we roll back the allocation and deny the request.


A better example

https://www.youtube.com/watch?v=7gMLNiEz3nw&list=PLxCzCOWd7aiGz9donHRrE9I3Mwn6XdP8p&index=42

Let's say we have a given resource allocation table for resources A, B and C, and process P1 through P5.

Total instances for each of the resources:

A = 10
B = 5
C = 7

Processes Alloc - A Alloc - B Alloc - C Max-A Max-B Max-C Avl-A Avl-B Avl-C Remaining-A B C
P1 0 1 0 7 5 3
P2 2 0 0 3 2 2
P3 3 0 2 9 0 2
P4 2 1 1 4 2 2
P5 0 0 2 5 3 3

So we calculate the available instance by subtracting the total allocation of each resource from it's total number of instances.

So for A, availability is : 10 - (2 + 3 + 2) = 10 - 7 = 3
For B, availability is: 5 - (1 + 1) = 5 - 2 = 3
For C, availability is: 7 - (2 + 1 + 2) = 7 - 5 = 2

So our availability matrix is (3, 3, 2)

And we calculate the remaining needs for the processes to be executed by subtracting the current allocation from their Max need.

So for P1, remaining need of A, B, C = (7-0), (5-1), (3-0) = 7,4,3
For P2, remaining need = 1, 2, 2
For P3, remaining need = 6, 0, 0
For P4, remaining need = 2, 1, 1
For P5, remaining need = 5, 3, 1

Processes Alloc - A Alloc - B Alloc - C Max-A Max-B Max-C Avl-A Avl-B Avl-C Remaining-A B C
P1 0 1 0 7 5 3 3 3 2 7, 4, 3
P2 2 0 0 3 2 2 3 3 2 1, 2, 2
P3 3 0 2 9 0 2 3 3 2 6, 0, 0
P4 2 1 1 4 2 2 3 3 2 2, 1, 1
P5 0 0 2 5 3 3 3 3 2 5, 3, 1

So running the availability numbers against the remaining needs, we see that process P4 can be successfully terminated.

P2 3 3 2 1, 2, 2

As the availability is greater than that of it's needs.

So P2 gets terminated, freeing up 2 instances of A

We add these values to get our new availability 5, 3, 2.

Processes Alloc - A Alloc - B Alloc - C Max-A Max-B Max-C Avl-A Avl-B Avl-C Remaining-A B C
P1 0 1 0 7 5 3 5 3 2 7, 4, 3
P3 3 0 2 9 0 2 5 3 2 6, 0, 0
P4 2 1 1 4 2 2 5 3 2 2, 1, 1
P5 0 0 2 5 3 3 5 3 2 5, 3, 1

Next we see that we can terminate process P4 as well since our availability exceeds it's needs.

So P4 gets terminated, freeing up 2 instances of A and 1 instance each for B and C.

We add these values to get our new availability 7, 4, 3

Processes Alloc - A Alloc - B Alloc - C Max-A Max-B Max-C Avl-A Avl-B Avl-C Remaining-A B C
P1 0 1 0 7 5 3 7 4 3 7, 4, 3
P3 3 0 2 9 0 2 7 4 3 6, 0, 0
P5 0 0 2 5 3 3 7 4 3 5, 3, 1

We see that we can now terminate process P1 as our availability equates that of it's remaining needs.

So P1 gets terminated, freeing up 1 instance of B.

Our new availability becomes 7, 5, 3

Processes Alloc - A Alloc - B Alloc - C Max-A Max-B Max-C Avl-A Avl-B Avl-C Remaining-A B C
P3 3 0 2 9 0 2 7 5 3 6, 0, 0
P5 0 0 2 5 3 3 7 5 3 5, 3, 1

Now process P3 gets terminated, freeing up 3 instances of A and 2 instances of C.

Our new availability becomes 10, 5, 5.

Processes Alloc - A Alloc - B Alloc - C Max-A Max-B Max-C Avl-A Avl-B Avl-C Remaining-A B C
P5 0 0 2 5 3 3 10 5 5 5, 3, 1
Lastly we terminate P5, thus freeing the remaining 2 instances of C.

So our current availability becomes: 10, 5, 7.


Conclusion

So here in this simulation, we see that if we grant the allocation request to P2, the processes get terminated one by one, and there is no deadlock detected, although some starvation, so the system is in a safe state.

So after running this simulation using the Banker's Algorithm the system can proceed with the resource allocation.

So, the safe state sequence will be: P2 -> P4 -> P1 -> P3 -> P5.

However this is not the only possible sequence, there are other valid safe sequences as well,

such as: P2 -> P4 -> P5 -> P1 -> P3.

We can also conclude that this is a safe sequence by checking that our current availability: 10, 5, 7 is the same as the total instances of each resource A, B and C.


Practical Considerations of Deadlock Avoidance:

  1. Advance Knowledge: The system must know in advance the maximum resources each process might need. This is often not practical in many real-world scenarios where processes may not have a predefined upper bound on their resource needs.

  2. Limited Applicability: Deadlock avoidance techniques, particularly the Banker's algorithm, are best suited for systems where resource requirements are relatively static and known beforehand (e.g., database systems or batch processing systems).

  3. Overhead: Constantly checking for safe states can lead to computational overhead, which may degrade system performance, especially with large numbers of processes and resources.

  4. Resource Underutilization: If the system frequently rolls back resource requests to avoid entering an unsafe state, it can lead to poor utilization of resources.


Difference Between Deadlock Prevention and Deadlock Avoidance


Deadlock Detection and Recovery

https://www.youtube.com/watch?v=pPM9Ajqmy_4&list=PLxCzCOWd7aiGz9donHRrE9I3Mwn6XdP8p&index=41&pp=iAQB

When it’s impractical to prevent or avoid deadlock, the system can instead detect deadlock and then take steps to recover. Deadlock detection allows processes to request resources without restriction, and the system monitors the processes to check if they are in a deadlock state. If deadlock is detected, the system can perform recovery to regain resources and resume normal operations

Deadlock Detection

Deadlock detection techniques vary based on whether the system has multiple instances of each resource or just one instance per resource. Each case requires a different approach to detect if there is a cycle (or circular dependency) among processes.

  1. Single Instance of Each Resource Type:

    • Resource-Allocation Graph: This graph-based method is suitable for systems with only one instance of each resource type.
    • Each node in the graph represents either a process or a resource.
    • An edge from a process to a resource indicates that the process has requested the resource.
    • An edge from a resource to a process indicates that the resource is currently allocated to that process.
    • Cycle Detection: If a cycle exists in the resource-allocation graph, a deadlock is present.
  2. Multiple Instances of Each Resource Type:

    • Wait-for Graph: This graph simplifies deadlock detection for systems with multiple instances of each resource by only showing which processes are waiting on other processes (ignoring resources directly).
    • If a cycle exists in the wait-for graph, deadlock is present.
  3. Banker’s Algorithm (Detection version):

    • When there are multiple instances of each resource type, the Banker’s Algorithm can be used in detection mode to check if the system can safely allocate resources to all processes without deadlock.

Deadlock Recovery

Once a deadlock is detected, the system must take steps to recover. Deadlock recovery methods fall into two categories:


Example of Deadlock Detection and Recovery

Consider a system with:

Let’s say we have the following state:

Process Max Allocation Need Available
P0 (7, 5, 3) (0, 1, 0) (7, 4, 3) (3, 3, 2)
P1 (3, 2, 2) (2, 0, 0) (1, 2, 2) -
P2 (9, 0, 2) (3, 0, 2) (6, 0, 0) -

Detection:

  1. Start with Available resources (3, 3, 2).
  2. For each process, check if it can complete given the Available resources.
  3. Suppose P0, P1, and P2 are all unable to finish, leading to a cycle detection and confirming deadlock.

Recovery:

  1. Process Termination: We could terminate P0, P1, or P2 to resolve the deadlock.
  2. Resource Preemption: We could reclaim resources from P1 (e.g., (2, 0, 0)) to increase the available resources and see if other processes can finish.
